The Total Internal Reflection (TIR) lens family is designed specifically for LuxiGen emitters, providing maximum Lux on Target™. The TIR lens collimates the LED light into efficient, well-controlled light beams that maximize the usable lumens in the target area with an absence of discomfort glare or shadows. The result is a smooth, high quality beam of superior intensity, uniformity, color over angle mixing, designed for downlighting and directional lighting applications. The narrow beam options are excellent for throw or distance lighting, adding punch to Stage and Entertainment applications.

Need a Quote? Have Questions?

1.408.922.7200 or Contact Us

Buy Lenses Online Now!

VIEW DETAILS

LZP-Series TIR lenses

Beam Angle (°):	10, 13, 19, 20, 32
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	52.2 x 84.0 32.2 x 72.8

VIEW DETAILS

LZC-Series TIR lenses

Beam Angle(°):	9, 13, 15, 20, 32, 50
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	51.0 x 84.0 42.2 x 63.6 26.3 x 47.5

VIEW DETAILS

LZ9-Series TIR lenses

Beam Angle(°):	17, 26, 39
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	19.2 x 38.9

VIEW DETAILS

LZ7-Series Compatible optics

Beam Angle Range (°):	7 - 58 (zoom)
Wavelength Range (nm):	Visible: 410 - 1100

VIEW DETAILS

LZ4-Series TIR lenses

Beam Angle (°):	7.4, 14, 18, 22, 40, 8 - 45 zoom
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	26.4 x 40.8 19.2 x 38.9 28.35 x 45.0

VIEW DETAILS

LZ1-Series TIR lenses

Beam Angle Range (°):	8 - 30; elliptical 12 - 44 for UV
Wavelength Range (nm):	Visible: 410 - 1100 UV: 365 - 1100
Dimensions (H x D, mm):	15.1 x 21.6

LZP-Series TIR lenses

Beam Angle (°):	10, 13, 19, 20, 32
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	52.2 x 84.0 32.2 x 72.8

Product information

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Height from Seating Plane (mm)	Diameter (mm)
LLNS-3T11-H	Narrow Spot	10	9.4	52.2	84.0	BuyNow!
LLSP-3T11-H	Spot	13	6.8	52.2	84.0	BuyNow!
LLNF-1T11-H	Narrow Flood	19	4.1	52.2	84.0	BuyNow!
LLNF-4T11-H	Narrow Flood - High Uniformity	21	2.8	52.2	84.0
LLFL-6T11-H	Flood - High Uniformity	35	1.5	52.2	84.0
LLWF-6T11-H	Wide Flood - High Uniformity	47	1.0	52.2	84.0
LLNF-3T11-H	Narrow Flood	20	3.8	32.2	72.8	BuyNow!
LLFL-3T11-H	Flood	32	1.5	32.2	72.8	BuyNow!

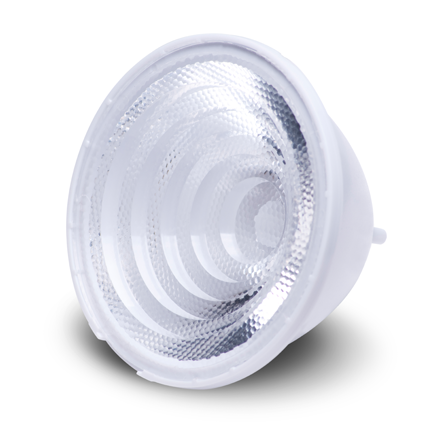

LZC-Series TIR lenses

Beam Angle (°):	9, 13, 15, 20, 32, 50
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	51.0 x 84.0 42.2 x 63.6 26.3 x 47.5

Product information

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Height from Seating Plane (mm)	Diameter (mm)
LLNS-1T08-H	Narrow Spot - Mono-color	9	14.6	51.0	84.0	BuyNow!
LLNS-3T08-H	Narrow Spot	13	7.7	51.0	84.0	BuyNow!
LLNF-1T08-H	Narrow Flood	20	5.0	51.0	84.0	BuyNow!
LLSP-2T08-H	Spot - High Uniformity	15	6.7	42.2	63.6
LLNF-3T08-H	Narrow Flood	20	3.9	26.3	47.5	BuyNow!
LLFL-5T08-H	Flood	32	1.7	26.3	47.5	BuyNow!
LLWF-3T08-H	Wide Flood	50	1.1	26.3	47.5	BuyNow!

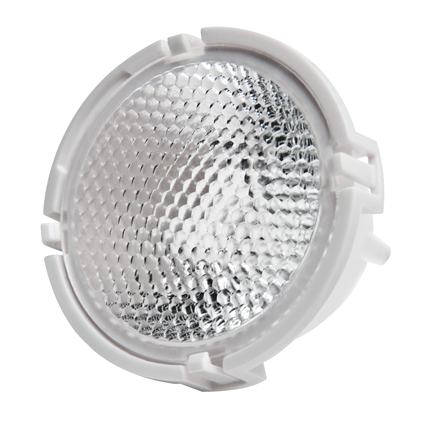

LZ9-Series TIR lenses

Beam Angle (°):	17, 26, 39
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	19.2 x 38.9

Product information

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Height from Seating Plane (mm)	Diameter (mm)
LLSP-3T06-H	Spot	17	5.4	19.2	38.9	BuyNow!
LLNF-3T06-H	Narrow Flood	26	2.2	19.2	38.9	BuyNow!
LLFL-3T06-H	Flood	39	1.2	19.2	38.9	BuyNow!

LZ7-Series Compatible Optics

Beam Angle Range (°):	7 - 58 (zoom)
Wavelength Range (nm):	410 - 1100

Product information

Data Sheet by Part Number	Description	Beam Angle Range FWHM (deg)	On-axis Efficiency (cd/lumen)
Solutions from Fraen Corp.:
FXCM-7-H + FCX-53-01-0R	Zoom	7 - 58	14 - 0.7
FXCM-7H-43B + FCX-53-02-0R	Zoom, High Temperature	7 - 56	14 - 0.7

Data Sheet by Part Number	Description	Beam Angle Range FWHM (deg)	On-axis Efficiency (cd/lumen)
Solutions from Auer Lighting.:
Light guide 71906 + Jupiter 110	Narrow Spot	7.7	38.3
Light guide 71916 +Jupiter 110	Narrow Spot	8.4	18.4

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Diameter (mm)
Solutions from Gaggione:
LLC59N	Narrow	11.8	20.3	45.0
LLC49N	Narrow	13.3	16.8	45.0
LLC59C	Narrow	14.2	12.8	45.0
LLC49M	Medium	25.8	3.2	45.0
LLC49W	Wide	36.3	1.8	45.0
LLC49E	Elliptical	38.6 ~ 13.0	4.5 ~ 4.5	45.0

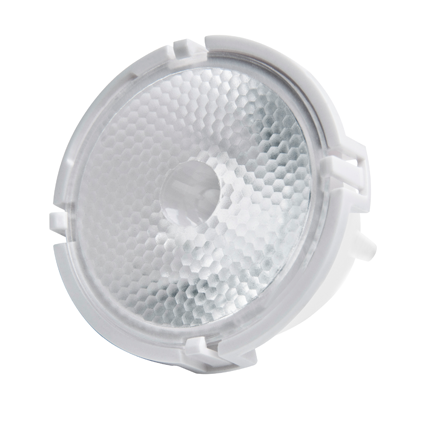

LZ4-Series TIR lenses

Beam Angle (°):	7.4, 14, 18, 22, 40, 8 - 45 zoom
Wavelength Range (nm):	410 - 1100
Dimensions (H x D, mm):	26.4 x 40.8 19.2 x 38.9 28.35 x 45.0

Product information

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Height from Seating Plane (mm)	Diameter (mm)
Solutions from LED Engin:
LLNS-2T06-H NEW!	Narrow Spot	14	8.8	19.2	38.9	BuyNow!
LLNF-2T06-H NEW!	Narrow Flood	25	2.9	19.2	38.9	BuyNow!
LLFL-2T06-H NEW!	Flood	37	1.6	19.2	38.9	BuyNow!
LLSP-1T06-H	Spot - Color Mixing	18	5.4	26.4	40.8	BuyNow!

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Diameter (mm)
Solutions from Gaggione for LZ4-04MDPB:
LLC59U	Narrow	5.7	64.0	45.0
LLC59N	Narrow	7.0	48.0	45.0
LLC49N	Narrow	8.3	32.0	45.0
LLC59C	Narrow	9.8	24.8	45.0
LLC49Z2	Zoom	8.4 ~ 0.0	29.0 ~ 0.0	45.0
LLC49M	Medium	22.8	3.8	45.0
LLC49W	Wide	31.8	2.1	45.0
LLC49E	Elliptical	9.8 ~ 40.1	6.0 ~ 6.0	45.0

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Height from Seating Plane (mm)	Diameter (mm)
Solutions from Gaggione for LZ4-04MDCA:
LLC69N	Narrow Spot	7.4	37.7	24.85	45.0
LLC69Z2+LLW19Z2	Zoom	7.4 - 51.2	33.4 - 1.1	27.0 + 7.1	45.0

Data Sheet by Part Number	Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)
Solutions from Fraen Corp.:
FXCM-5D-47B + FCX-53-01-0R	Zoom	5 - 43	51 - 1.3
FXCM-5D-47B + FCX-35-01-0R	Zoom	7 - 47	22 - 1.1

Data Sheet by Part Number	Description	Beam Angle FWHM (deg)	Height (mm)	Diameter (mm)
Solutions from LEDiL for LZ4-04MDPB:
CX15577_GABRIELLA-45-S	Spot - RGBW	8	30.4	45

Data Sheet by Part Number	Description	Beam Angle FWHM (deg)	Height (mm)	Diameter (mm)
Solutions from LEDiL for LZ4-04UV00:
FCA15007_G2-ROSE-UV-SS	Spot - UV	15	12.86	21.57 x 21.57
FCA14962_G2-NIS033U-M-PIN	Medium - UV	27	12.9	21.6 x 21.6
FCA14963_G2-NIS033U-S-PIN	Spot - UV	18	12.9	21.6 x 21.6

LZ1-Series TIR lenses

Beam Angle Range (°):	8 - 30; elliptical 12 - 44 for UV
Wavelength Range (nm):	Visible: 410 - 1100 UV: 365 - 1100
Dimensions (H x D, mm):	15.1 x 21.6

Product information

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	Height from Seating Plane (mm)	Diameter (mm)
Solutions from LEDiL for LZ1-00UV00:
FCA15007_G2-ROSE-UV-SS	Smooth Spot - UV	12	12.86	21.57 x 21.57
FCA15008_G2-ROSE-UV-M	Medium - UV	26	12.86	21.57 x 21.57
FCA15009_G2-ROSE-UV-W	Wide - UV	44	12.86	21.57 x 21.57

Data Sheet by Part Number	Beam Description	Beam Angle FWHM (deg)	On-axis Efficiency (cd/lumen)	Height from Seating Plane (mm)	Diameter (mm)
Solutions from LEDiL:
FCN10784_LE1-RS	Narrow Spot	8	17.0	15.1	21.6
FCN10786_LE1-D	Spot	10	6.8	15.1	21.6
FCN10783_LE1-M	Narrow Flood	24	3.5	15.1	21.6
FCN11454_LE1-M2	Flood	30	3.2	15.1	21.6
FCN11103_LE1-O-90	Elliptical	40+20	4.0	15.1	21.6
FCN10785_LE1-REC	Elliptical	38+24	2.3	15.1	21.6
