LED Emitters
LZ Series
LED Engin offers 1-, 4-, 7-, 9-, 12- and 24-die emitter products with highest efficacies in smallest packages providing industry leading flux densities (lm/mm2). LED Engin's color offerings consist of red, deep red, far red, green, blue, amber, dental blue and white in the visible range and ultra violet (365nm and 400nm) and infrared (850nm) in the non-visible range. The multi-chip packages are also available with multi color / wavelength options such as RGB, RGBA or Dental Blue & UV. Every die is individually addressable for a maximum of design flexibility.
| Number of Die: | 24 or 25 |
| Dimensions (L x W, mm): | 12.0 x 12.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 0.6 |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |
LZC
| Number of Die: | 12 |
| Dimensions (L x W, mm): | 9.0 x 9.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 0.7 |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |
LZ9
| Number of Die: | 9 |
| Dimensions (L x W, mm): | 7.0 x 7.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 800 |
| Thermal Resistance (°C/W): | 1.3 |
| Max Junction Temperature (°C): | 150°C |
LZ7
| Number of Die: | 7 |
| Dimensions (L x W, mm): | 7.0 x 7.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 850-1500 |
| Thermal Resistance (°C/W): | 1.4 |
| Max Junction Temperature (°C): | 125°C |
LZ4
| Number of Die: | 4 |
| Dimensions (L x W, mm): | 7.0 x 7.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 1.1 |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |

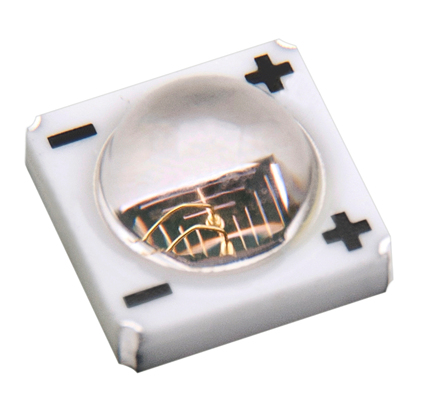

LZ1
| Number of Die: | 1 |
| Dimensions (L x W, mm): | 4.4 x 4.4 |
| Nominal Drive Current (mA): | 1000 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 6.0 (4.2 for UV and Dental Blue only) |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |

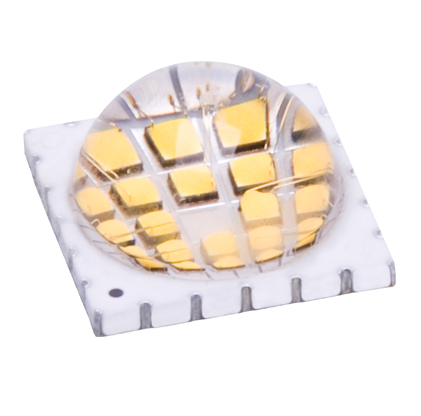

LZP
| Number of Die: | 24 or 25 |
| Dimensions (L x W, mm): | 12.0 x 12.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 0.6 |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |
Data sheets
Multi Color LEDs
| Typical Flux (Lumens) @ 700mA | Optical | Mechanical | ||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Red | Green | Blue | White | Files | Files | |
| RGBW Flat Lens | 460 | 820 | 190 | 1470 |
|
|
BuyNow! | |
| RGBW Dome Lens | 765 | 920 | 230 | 1550 |
|
|
BuyNow! | |
Horticulture LEDs
| PF 280-800nm (µ mol/s) @ 700mA | Optical | Mechanical | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Deep Red | Far Red | Blue | Green | Total | Files | Files | |
| Multi-Wavelength | 31.2 | 12.6 | 28.7 | 5.7 | 78.2 |
|
|
BuyNow! | |
UV LEDs
| Part Number | Description | Typical Flux (W) 700mA |
Typical Flux (W) 1000mA |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
|
Violet 385nm peak 395nm peak 405nm peak |
24.50 24.50 22.50 |
34.00 34.00 31.00 |
|
BuyNow! |
White LEDs
| Part Number | Description | Typical Flux (Lumens) 700mA |
Typical Flux (Lumens) 1000mA |
CCT | CRI | Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|---|---|
| Cool White | 4400 | 5700 | 5500K | 75 |
|
|
BuyNow! | |
| Gallery White | 2650 | 3450 | 3000K | 98 |
|
|
BuyNow! |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel | |
|---|---|---|---|---|---|
| LZP-Dxxx00 | LZP Standard Star Board | 28.3 | 0.10 °C/W | 5-channel |

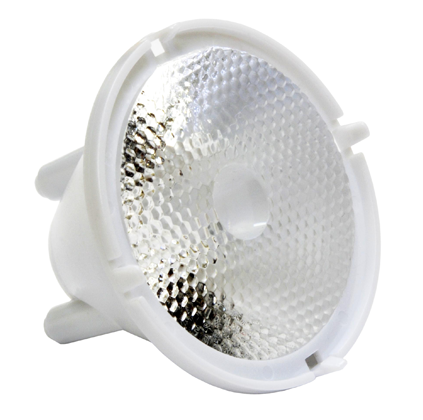

| Part Number | Beam | Degree | |||
|---|---|---|---|---|---|
| LLNS-3T11-H | Narrow Spot | 10° | |||
| LLSP-3T11-H | Spot | 13° | |||
| LLNF-1T11-H | Narrow Flood | 19° | |||
| LLNF-4T11-H | Narrow Flood - High Uniformity | 21° | |||
| LLFL-6T11-H | Flood - High Uniformity | 35° | |||
| LLWF-6T11-H | Wide Flood - High Uniformity | 47° | |||
| LLNF-3T11-H | Narrow Flood | 20° | |||
| LLFL-3T11-H | Flood | 32° |
Application Notes
| Thermal Management Practical Application for High power LED emitters 496kb |
Solutions Provider - Complementary Components
| Secondary Optics |
| Optical Design Resources |
| CC and CV Power Supplies |
| Assembly & Integration |
| Heatsinks |
| Metal Core PCB Solutions |
LZC
| Number of Die: | 12 |
| Dimensions (L x W, mm): | 9.0 x 9.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 0.7 |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |
Data sheets
Multi Color LEDs
| Typical Flux (Lumens) @ 700mA | Optical | Mechanical | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Red | Green | Blue | Amber | White | Files | Files | |
| LZC-03MA07 | Red, Green, Blue & Amber (RGBA)* | 340 | 430 | 100 | 320 | --- |
|
BuyNow! | |
| LZC-03MD07 | Red, Green, Blue & White (CCT: 5500K)* | 340 | 430 | 100 | --- | 600 |
|
|
BuyNow! |
| Red, Green & Blue (RGB) | 280 | 455 | 100 | --- | --- |
|
BuyNow! | ||
|
* individually addressable die NRND = Not Recommended for New Design |
|||||||||

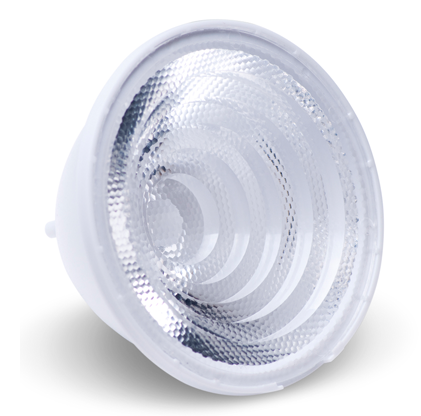

| Part Number | Beam | Degree | |||
|---|---|---|---|---|---|
| LLNS-1T08-H | Narrow Spot - Mono-color | 9° | |||
| LLNS-3T08-H | Narrow Spot | 13° | |||
| LLNF-1T08-H | Narrow Flood | 20° | |||
| LLSP-2T08-H | Spot - High Uniformity | 15° | |||
| LLNF-3T08-H | Narrow Flood | 20° | |||
| LLFL-5T08-H | Flood | 32° | |||
| LLWF-3T08-H | Wide Flood | 50° |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel | |
|---|---|---|---|---|---|
| LZC-8xxx00 | LZC Star Board | 28.3 | 0.6 °C/W | 3-channel | |
| LZC-Bxxx07 | LZC Star Board (for -07 emitters) | 28.3 | 0.1 °C/W | 4-channel | |
| LZC-Axxx00 | LZC Star Board | 28.3 | 0.1 °C/W | 4-channel |
UV LEDs
| Part Number | Description | Typical Flux (W) 700mA |
Typical Flux (W) 1000mA |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
|
Violet 385nm peak 395nm peak 405nm peak |
13.00 13.00 12.00 |
18.00 18.00 16.60 |
|
BuyNow! |
| Part Number | Beam | Degree | |||
|---|---|---|---|---|---|
| LLNS-1T08-H | Narrow Spot - Mono-color | 9° | |||
| LLNS-3T08-H | Narrow Spot | 13° | |||
| LLNF-1T08-H | Narrow Flood | 20° | |||
| LLSP-2T08-H | Spot - High Uniformity | 15° | |||
| LLNF-3T08-H | Narrow Flood | 20° | |||
| LLFL-5T08-H | Flood | 32° | |||
| LLWF-3T08-H | Wide Flood | 50° |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel | |
|---|---|---|---|---|---|
| LZC-7xxx00 | LZC Standard Star Board | 28.3 | 0.6 °C/W | 1-channel | |
| LZC-Cxxx00 | LZC Standard | 28.3 | 0.6 °C/W | 2-channel |
White LEDs
| Part Number | Description | Typical Flux (Lumens) 700mA |
Typical Flux (Lumens) 1000mA |
CCT | CRI | Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|---|---|
| Cool White | 2350 | 3000 | 5500K | 70 |
|
|
BuyNow! | |
| Gallery White | 1400 | 1800 | 3000K | 98 |
|
|
BuyNow! |
| Part Number | Beam | Degree | |||
|---|---|---|---|---|---|
| LLNS-1T08-H | Narrow Spot - Mono-color | 9° | |||
| LLNS-3T08-H | Narrow Spot | 13° | |||
| LLNF-1T08-H | Narrow Flood | 20° | |||
| LLSP-2T08-H | Spot - High Uniformity | 15° | |||
| LLNF-3T08-H | Narrow Flood | 20° | |||
| LLFL-5T08-H | Flood | 32° | |||
| LLWF-3T08-H | Wide Flood | 50° |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel | |
|---|---|---|---|---|---|
| LZC-7xxx00 | LZC Standard | 28.3 | 0.6 °C/W | 1-channel | |
| LZC-Cxxx00 | LZC Standard | 28.3 | 0.6 °C/W | 2-channel |
Application Notes
| Thermal Management Practical Application for High power LED emitters 496kb |
Solutions Provider - Complementary Components
| Secondary Optics |
| Optical Design Resources |
| CC and CV Power Supplies |
| Assembly & Integration |
| Heatsinks |
| Metal Core PCB Solutions |

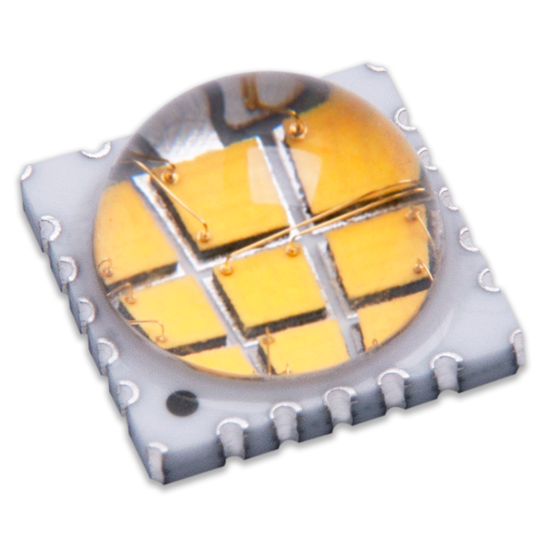

LZ9
| Number of Die: | 9 |
| Dimensions (L x W, mm): | 7.0 x 7.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 800 |
| Thermal Resistance (°C/W): | 1.3 |
| Max Junction Temperature (°C): | 150°C |
Data sheets
White LEDs
| Part Number | Description | Typical Flux (Lumens) 700mA |
CCT | CRI | Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|---|
| LZ9-00CW00 | Cool White | 1800 | 5500K | 75 |
|
|
BuyNow! |
| Gallery White | 1060 | 3000K | 98 |
|
|
BuyNow! |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel |
|---|---|---|---|---|
| LZ9-Jxxxxx | LZ9 Standard | 19.9 | 0.2 °C/W | 1-channel |
| LZ9-Mxxxxx | LZ9 Standard | 19.9 | 0.2 °C/W | 3-channel |
| Part Number | Beam | Degree | ||
|---|---|---|---|---|
| LLSP-3T06-H | Spot | 17° | ||
| LLNF-3T06-H | Narrow Flood | 26° | ||
| LLFL-3T06-H | Flood | 39° |
Application Notes
| Thermal Management Practical Application for High power LED emitters 496kb |
Solutions Provider - Complementary Components
| Secondary Optics |
| Optical Design Resources |
| CC and CV Power Supplies |
| Assembly & Integration |
| Heatsinks |
| Metal Core PCB Solutions |
LZ7
| Number of Die: | 7 |
| Dimensions (L x W, mm): | 7.0 x 7.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 850-1500 |
| Thermal Resistance (°C/W): | 1.4 |
| Max Junction Temperature (°C): | 125°C |
Data sheets
Multi Color LEDs
| Typical Flux @ 700mA | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Red | Green | Blue | White | Amber | Cyan | Violet | Optical | Mechanical | |||
| Part Number | Description | (lm) | (lm) | (lm) | (lm) | (lm) | (lm) | (W) | Files | Files | |
| RGBW-Amber-Cyan-Violet Flat Lens |
80 | 140 | 33 | 210 | 70 | 95 | 0.90 |
|
|
BuyNow! | |
| RGBW-PC Amber-Cyan-Violet Flat Lens |
80 | 140 | 33 | 200 | 100* | 95 | 0.80 |
|
BuyNow! | ||
|
* PC Amber NRND = Not Recommended for New Design |
|||||||||||
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel | |
|---|---|---|---|---|---|
| LZ7-Nxxxxx | LZ7 Standard | 38.3x31.2 | 0.1 °C/W | 7-channel |
Accessory Lenses available from the following manufacturers:
Application Notes
| Thermal Management Practical Application for High power LED emitters 496kb |
Solutions Provider - Complementary Components
| Secondary Optics |
| Optical Design Resources |
| CC and CV Power Supplies |
| Assembly & Integration |
| Heatsinks |
| Metal Core PCB Solutions |
Browse: Multi-Color | UV | Specialty | Direct Colors | White | Application Notes | Solutions Provider

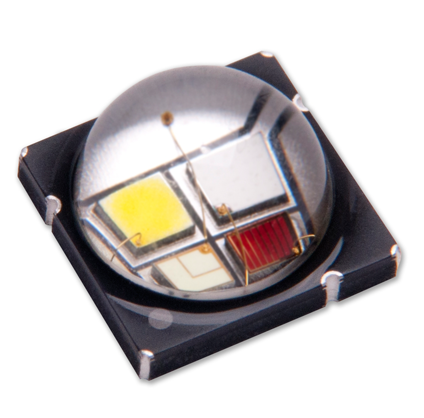

LZ4
| Number of Die: | 4 |
| Dimensions (L x W, mm): | 7.0 x 7.0 |
| Nominal Drive Current (mA): | 700 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 1.1 |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |
Data sheets
Multi Color LEDs
| Typical Flux @ Max If | Optical | Mechanical | ||||||
|---|---|---|---|---|---|---|---|---|
| Red | Green | Blue | White | Files | Files | |||
| @2.5A | @3.0A | @3.0A | @3.0A | |||||
| Part Number | Description | (lm) | (lm) | (W) | (lm) | |||
| RGBW Power (High Current, Flat Lens emitter) |
240 | 380 | 2.8 | 630 |
|
|
BuyNow! | |
| Typical Flux (Lumens) @ 1.5A | Optical | Mechanical | ||||||
| Red | Green | Blue | White | Files | Files | |||
| RGBW flat lens emitter-plus (1.5A max), +/- pins alternating type 2 |
160 | 220 | 58 | 370 |
|
|
BuyNow! | |
| Typical Flux (Lumens) @ 700mA | Optical | Mechanical | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Red | Green | Blue | Amber | White | Files | Files | |||
| Red, Green, Blue & Cool White +/- pins alternating type 3 |
130 | 165 | 39 | --- | 240 |
|
|
BuyNow! | |
| RGBW flat lens emitter, +/- pins aligned |
79 | 140 | 33 | --- | 200 |
|
|
BuyNow! | |
| Red, Green, Blue & Cool White, +/- pins aligned |
130 | 165 | 39 | --- | 240 |
|
|
BuyNow! | |
| LZ4-00MD06 | Red, Green, Blue & Cool White, +/- pins aligned |
85 | 140 | 30 | --- | 170 |
|
BuyNow! | |
| LZ4-00MA00 | Red, Green, Blue & Amber (RGBA) | 115 | 155 | 30 | 75 | --- |
|
BuyNow! | |
| LZ4-00MC00 | Red, Green & Blue (RGB) | 115 | 280 | 30 | --- | --- |
|
BuyNow! | |
| LZ4-00MD00 | Red, Green, Blue & Cool White, +/- pins alternating |
115 | 155 | 30 | --- | 170 |
|
BuyNow! | |
UV LEDs
| Part Number | Description | Typical Flux (W) 700mA |
Typical Flux (W) 1000mA |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
| Ultraviolet (365 nm peak) | 3.30 | 4.60 |
|
|
BuyNow! | |
|
Violet 385nm peak 395nm peak 405nm peak |
4.50 4.50 4.10 |
6.20 6.20 5.70 |
|
BuyNow! |
Specialty LEDs
| Part Number | Description | Typical Flux (W) 700mA |
Typical Flux (W) 1000mA |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
| Deep Red (660 nm peak) | 2.90 | 4.10 |
|
|
BuyNow! | |
| Far Red (740 nm peak) | 2.10 | 2.70 |
|
|
BuyNow! | |
| Infrared (850 nm peak) | 2.58 | 3.60 |
|
|
BuyNow! | |
| Infrared Dual Junction (850 nm peak) |
3.75 | 5.25 |
|
|
BuyNow! | |
| Infrared Dual Junction (940 nm peak) |
3.75 | 5.25 |
|
|
BuyNow! | |
| LZ4-00DB00 | Dental Blue (460 nm peak) | 3.25 | 4.20 |
|
BuyNow! | |
| LZ4-00D100 |
Dental (Blue + 400 nm UV) 1 UV Die 3 DB Dies Combined |
0.93 2.40 3.33 |
1.30 3.10 4.40 |
|
|
BuyNow! |
Direct Color LEDs
| Part Number | Description | Typical Flux (Lumens) 700mA |
Typical Flux (Lumens) 1000mA |
Wavelength λD |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|---|
| Red | 500 | 700 | 623nm |
|
|
BuyNow! | |
| Green | 640 | 835 | 523nm |
|
|
BuyNow! | |
| Blue | 145 | 195 | 457nm |
|
|
BuyNow! | |
| Amber | 400 | 520 | 590nm |
|
|
BuyNow! |
White LEDs
| Part Number | Description | Typical Flux (Lumens) 700mA |
Typical Flux (Lumens) 1000mA |
CCT | CRI | Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|---|---|
| Cool White | 800 | 1050 | 5500K | 75 |
|
|
BuyNow! | |
| Gallery White | 480 | 620 | 3000K | 98 |
|
|
BuyNow! |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel | |
|---|---|---|---|---|---|
| LZ4-4xxx00 | LZ4 Standard | 19.9 | 1.1 °C/W | 1-channel | |
| LZ4-2xxx00 | LZ4 Standard | 19.9 | 1.1 °C/W | 4-channel |
| Part Number | Beam | Degree | |||
|---|---|---|---|---|---|
| Narrow Spot | 14° | ||||
| Narrow Flood | 25° | ||||
| Flood | 37° | ||||
| LLSP-1T06-H | Spot - Color Mixing | 18° |
Accessory Lenses available from the following manufacturers:
Application Notes
| Thermal Management Practical Application for High power LED emitters 496kb |
Solutions Provider - Complementary Components
| Secondary Optics |
| Optical Design Resources |
| CC and CV Power Supplies |
| Assembly & Integration |
| Heatsinks |
| Metal Core PCB Solutions |
LZ1
| Number of Die | 1 |
| Dimensions (L x W, mm): | 4.4 x 4.4 |
| Nominal Drive Current (mA): | 1000 |
| Maximum Drive Current (mA): | 1200 |
| Thermal Resistance (°C/W): | 6.0 (4.2 for UV and Dental Blue only) |
| Max Junction Temperature (°C): | 150°C (125°C for Red, Amber and UV) |
Data sheets
UV LEDs
| Part Number | Description | Typical Flux (mW) 700mA |
Typical Flux (mW) 1000mA |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
| LZ1-00UV00 | Ultraviolet (365 nm peak) | 1200 | 1680 |
|
|
BuyNow! |
|
Violet 385nm peak 395nm peak 405nm peak |
1150 1150 1050 |
1570 1570 1430 |
|
|
BuyNow! | |
| Part Number | Description | Typical Flux (mW) 1000mA |
Typical Flux (mW) 3000mA |
Optical Files |
Mechanical Files |
|
| LZ1-00UAP5 NEW! | Violet (395 nm Power) | 1700 | 4100 |
|
||
Specialty LEDs
| Part Number | Description | Typical Flux (mW) 700mA |
Typical Flux (mW) 1000mA |
Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
| Deep Red (660 nm peak) | --- | 1050 |
|
|
BuyNow! | |
| Far Red (740 nm peak) | --- | 900 |
|
|
BuyNow! | |
| Infrared (850 nm peak) | --- | 930 |
|
|
BuyNow! | |
| Infrared Dual Junction (850 nm peak) |
--- | 1350 |
|
|
BuyNow! | |
| Infrared Dual Junction (940 nm peak) |
--- | 1350 |
|
|
BuyNow! | |
| LZ1-00DB00 | Dental Blue (460 nm peak) | 850 | 1100 |
|
|
BuyNow! |
Direct Color LEDs
| Part Number | Description | Typical Flux (Lumens) 1000mA |
Wavelength λD | Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|
| Red | 180 | 623nm |
|
|
BuyNow! | |
| Green | 215 | 523nm |
|
|
BuyNow! | |
| Blue | 50 | 457nm |
|
|
BuyNow! | |
| Amber | 115 | 590nm |
|
|
BuyNow! |
White LEDs
| Part Number | Description | Typical Flux (Lumens) 1000mA |
CCT | CRI | Optical Files |
Mechanical Files |
|
|---|---|---|---|---|---|---|---|
| Cool White | 315 | 5500K | 75 |
|
|
BuyNow! |
MCPCB Options
| Part Number | Description | Diameter mm |
Thermal Resistance |
Channel |
|---|---|---|---|---|
| LZ1-1xxx00 | LZ1 Standard Star Board | 19.9 | 1.5 °C/W | 1-channel |
| LZ1-3xxx00 | LZ1 Miniature Round | 11.5 | 2 °C/W | 1-channel |
Accessory Lenses available from the following manufacturers:
Application Notes
| Thermal Management Practical Application for High power LED emitters 496kb |
Solutions Provider - Complementary Components
| Secondary Optics |
| Optical Design Resources |
| CC and CV Power Supplies |
| Assembly & Integration |
| Heatsinks |
| Metal Core PCB Solutions |
